Home » Products » Devices » Single Beam Echosounders

Atlas Deso
	The ATLAS DESO Single-beam Echosounder series are manufactured by Atlas Hydrographic group, of New South Wales, Australia. The line includes DESO models 14,15, 20, 25 and 30.

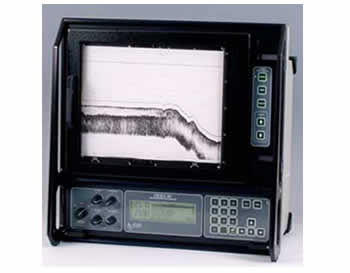

	The latest model (DESO 30) connects to a low frequency and high frequency transducer (or optional sidescan transducer array). The DESO 30 features an interchangeable high-resolution paper recorder and full screen daylight LCD display with raw data storage and replay. It can handle frequencies ranging from 10kHz to 750kHz with automatic and manual ping tuning to provide coverage to 6000m. The DESO 30 has external interfaces including Ethernet and inputs from GPS/DGPS receivers and compasses. OIC supports reading water depth from ATLAS DESO Echosounders via GeoDAS-PC and GeoDAS-LT, over a standard RS-232 serial connection. For details on utilizing GeoDAS-LT for single-beam surveys, download our reference document PDF Single-beam survey with GeoDAS-LT. For examples of single-beam surveys, please see our Data Samples page by clicking here.
