| Multibeam
Mosaicking |
| |
Below is a list of multibeam sonars currently
supported by OIC products, along with sample data for each sonar
type.
|
| |

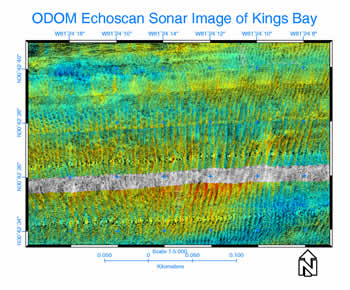

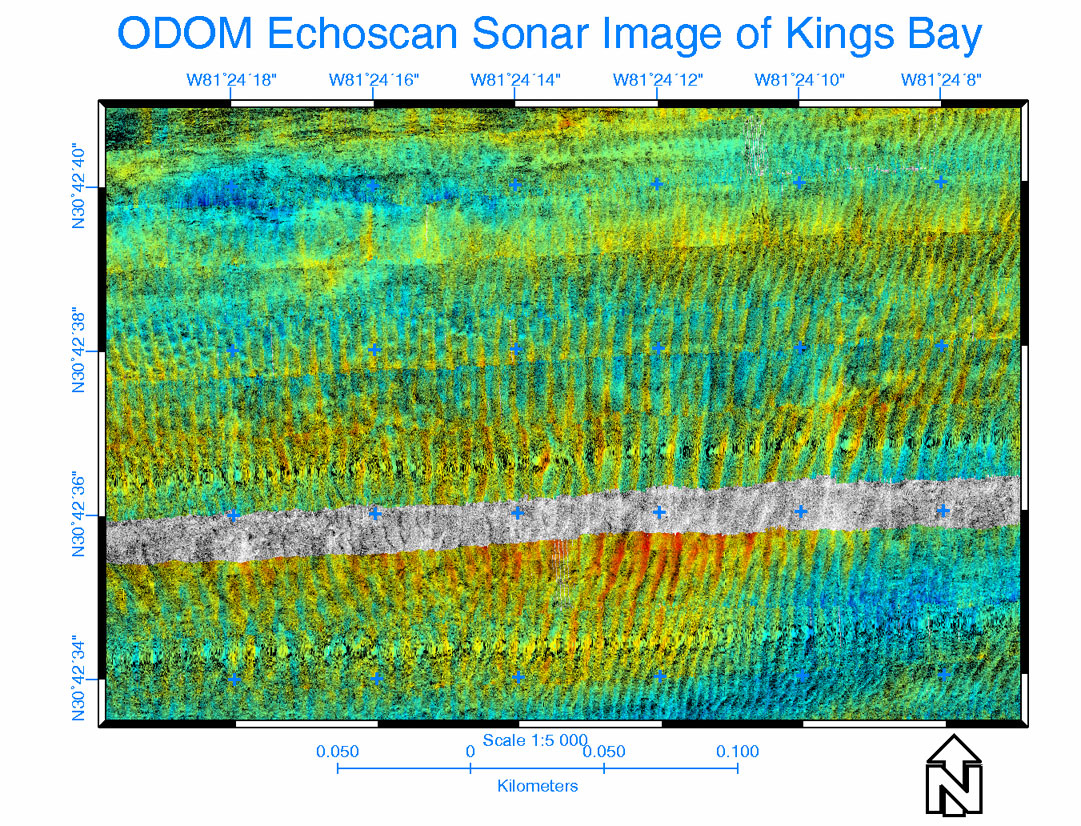

KINGS BAY, GA |
| |
The Odom Echoscan is
manufactured by Odom
Hydrographic Systems, Inc., of Baton Rouge, Louisiana.
Data were collected during a training session
for Army Corps of Engineers Jacksonville District. The data were processed in GeoDAS-Desktop at 30-cm resolution
and map annotations were added in ER Mapper.
|
| |

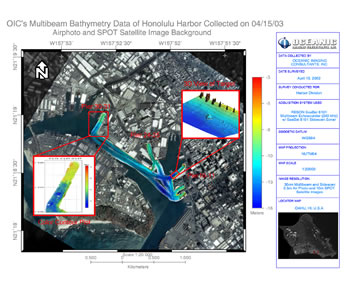

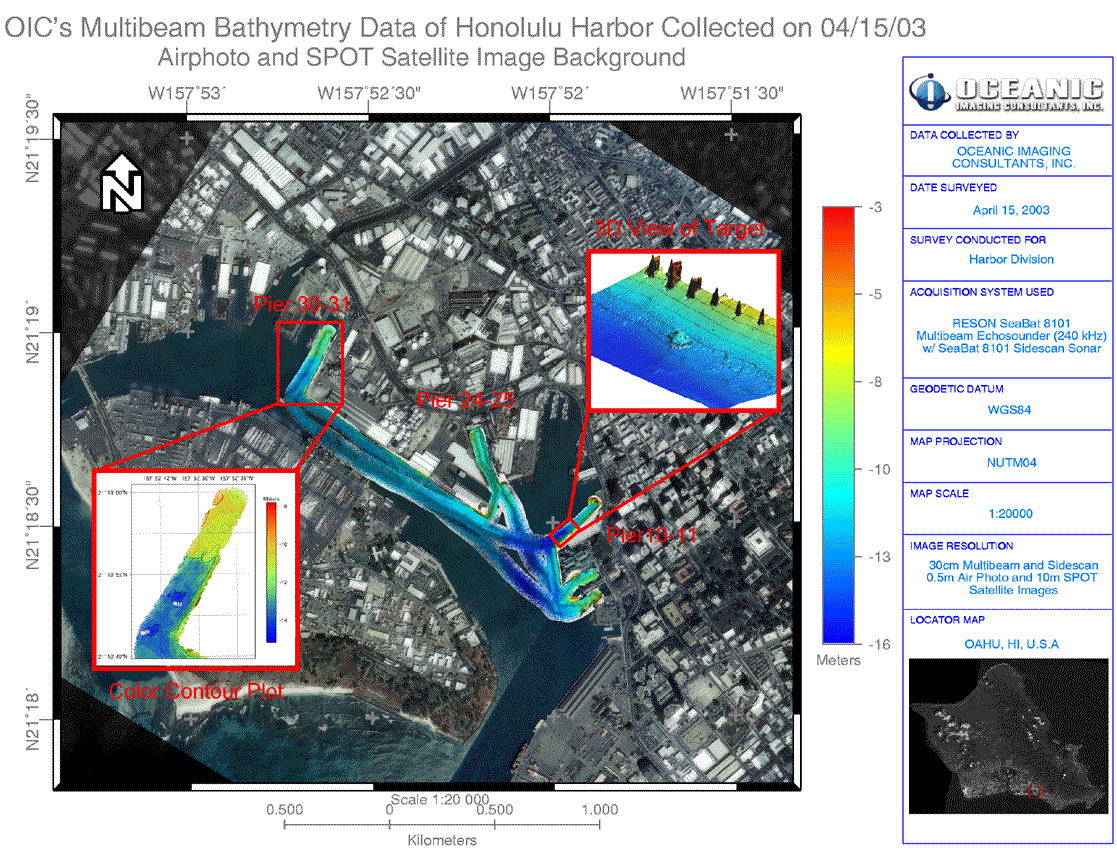

HONOLULU HARBOR , HI |
| |
The Reson SeaBat series are manufactured by Reson,
Inc., Slangerup, Denmark.
Bathymetry and sidescan data were collected and processed (10-cm resolution) in GeoDAS and overlaid on top of air photo and SPOT satellite images in ER Mapper. 3D view of a target and a bathymetry contour map were inserted to show details.
SeaBeam sensors are now manufactured by L-3 Communications Elac Nautik GmbH, of Kiel, Germany
|
| |
MID-ATLANTIC RIDGE |
| |
The Simrad EM series were manufactured by Kongsberg, now Kongsberg Maritime, located in Kongsberg, Norway.

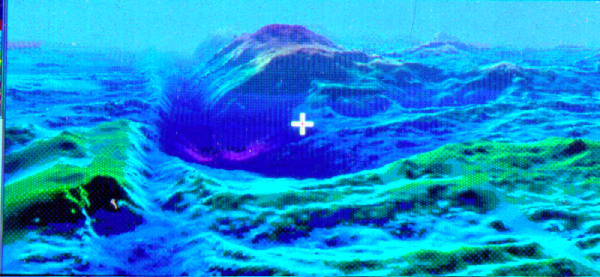

OIC rendering of SeaBeam data of the Mid-Atlantic Ridge,
Data complements of Brian Tucholke, Woods Hole Oceanographic Institute.
