The Teledyne Benthos SIS-1600 Series Side Scan Sonar is a fully integrated system
that uses both advanced Chirp and conventional continuous wave (CW)
technologies—single frequency or dual frequency—and an advanced high-speed
communications link to acquire high resolution side scan sonar images.
The Teledyne Benthos SIS-1600 is a complete side scan sonar survey system that
includes a topside acquisition system and software, a 100-meter tow cable,

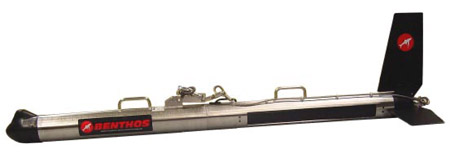

the CL-160 Communications Link, and one of two available tow vehicles: the
TTV-196 Tow Vehicle, which acquires long range, high resolution Chirp side
scan sonar images in a single frequency band; and the TTV-196D Tow Vehicle,
which acquires long range, high resolution Chirp side scan sonar images in
two frequency bands simultaneously. In addition to the Chirp side scan
sonar, both tow vehicles provide CW side scan sonar which can be used to
acquire high resolution images over short ranges.
OIC supports the Teledyne Benthos 1600 Series (including the 1624 and 1625)
sidescan sensors via GeoDAS-PC/TBI, providing a full control, logging and
real-time processing solution. For details, see the GeoDAS section of our web page. Download a
copy of the Teledyne Benthos 1600 series spec sheets by clicking here. |
