GeoDAS-MB / Supported Sensors: Atlas Hydrosweep

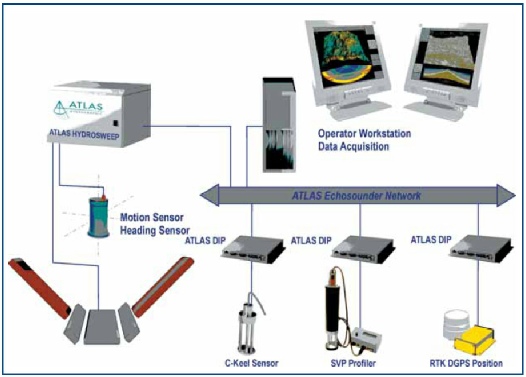

- The Atlas Hydrosweep multibeam system is manufactured by Atlas Hydrographic, Sydney, Australia.
- The name Atlas Hydrosweep comes from “HYDROgraphic Multi-Beam SWEEPing Survey Echosounder”.
- The Hydrosweep MD (Medium Depth) is a beam-forming multi-beam system suitable for surveys from 10 m to 2000 m, 4,000 m, 5000 m or 6000 m depending on the transducer and frequency configuration.
- Operating at 30kHz or 50kHz the Atlas Hydrosweep MD is optimized for surveys on the continental shelf and on the continental slope.
- The Hydrosweep has a bathymetric swath width of up to 10 times water depth, and a side scan imagery swath of 12 times water depth.
- Atlas Hydrosweep s supported via post-processing in the OICToolkit.
