Reson SeaBat: 9001/81XX


The Reson SeaBat series are manufactured by Reson, Inc., Slangerup, Denmark.

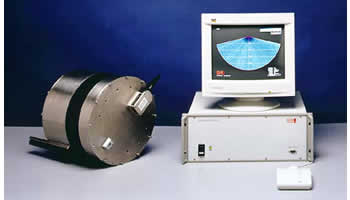

The SeaBat 8101 Multibeam Echosounder operates at a frequency of 240 kHz, with a depth range of up to 300 meters.




Transducer depth operating ranges include 120, 300, 1500m, 3000m and 6000m (depending on series type), with a swath coverage of 7.4x water depth. The SeaBat utilizes up to 3,000 soundings per second for a swath that can be over 500 meters wide, and a measurement rate up to 40 profiles per second. For more information on the Reson SeaBat 81XX series, click here.

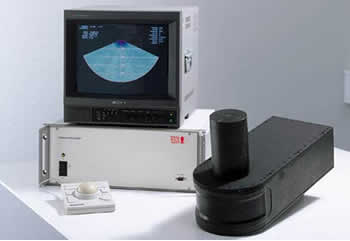

The SeaBat 9001 operates at a frequency of 455 kHz, with a depth range of 140 meters.




Transducer depth operating ranges include 350 & 500 meters, with a swath coverage of 2x to 4x water depth. For more information on the Reson SeaBat 9001, click here.

OIC supports SeaBat data acquisition using GeoDAS-MB, with support for bathymetry, beam-amplitude, sidescan and snippets. To view Reson SeaBat data samples, click here.
