Data Samples / Multibeam Mosaic Samples
Below is a list of multibeam sonars currently supported by OIC products, along with sample data for each sonar type. (Click an image to magnify it.)
- The Odom Echoscan is manufactured by Odom Hydrographic Systems, Inc., of Baton Rouge, Louisiana.
- Data were collected during a training session for Army Corps of Engineers Jacksonville District.
- The data were processed in GeoDAS-Desktop at 30-cm resolution and map annotations were added in ER Mapper.
- The Reson SeaBat series are manufactured by Reson, Inc., Slangerup, Denmark.
- Bathymetry and sidescan data were collected and processed (10-cm resolution) in GeoDAS and overlaid on top of air photo and SPOT satellite images in ER Mapper.
- 3D view of a target and a bathymetry contour map were inserted to show details.
- SeaBeam sensors are now manufactured by L-3 Communications, Elac Nautik GmbH, of Kiel, Germany.
- The Simrad EM series were manufactured by Kongsberg (now known as Kongsberg Maritime) located in Kongsberg, Norway.

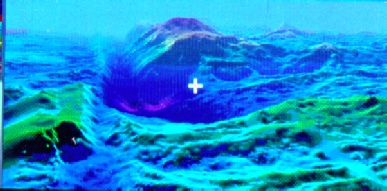

- OIC rendering of SeaBeam data of the Mid-Atlantic Ridge.
- Data complements of Brian Tucholke, Woods Hole Oceanographic Institute.
