Interferometric Sidescans / Overview

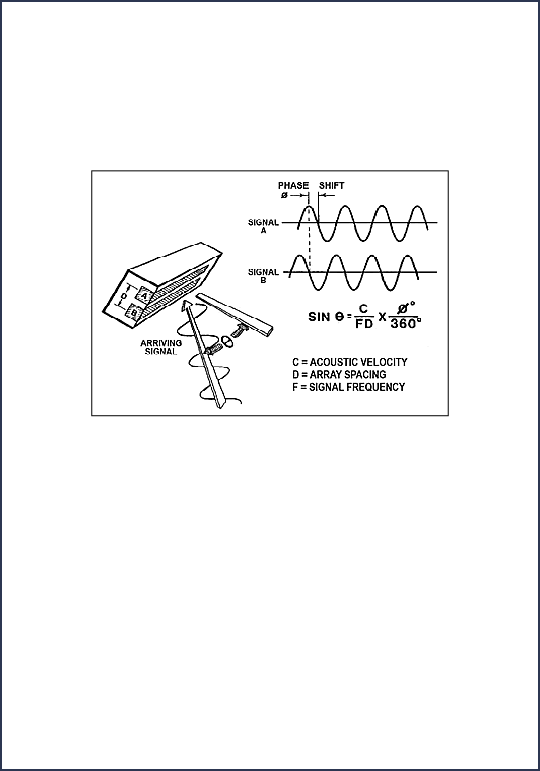

Interferometric bathymetric sidescan sonar is much like standard sidescan sonar, illuminating the bottom with a narrow, fan-shaped beam, and recording the reflected echoes as a uniformly sampled time series. A bathymetric sidescan however, receives the echoes on two or more parallel arrays, per side. The arrays are sampled independently, so that any plane-wave striking them will produce a phase difference indicative of the arrival angle. With the travel time of the echoes, the arrival angle is calculated from phase difference, the array mount angles and the towfish attitude, one can calculate reflector distance and depth.

Overview

Sensors Supported:

AMS Systems

DSL-120

RDI: BSSS

SeaMARC II - SeaMARC CL

SSI SYS09 - SYS120

TAMU-TAMU

Teledyne Benthos C3D

UEOS Deepscan
